What are the common safety features on a wheelie bin dumper?

Typical safety features include fixed guarding, safety light barriers at the loading zone, emergency stop buttons, and interlocked access gates. These are designed to meet standards such as BS EN 14120:2015 and PUWER regulations.

Can this equipment be integrated into an existing production line?

Yes, wheelie bin dumpers are often designed for seamless integration. Buyers should consider the discharge height, footprint, and control system compatibility with their current setup.

What maintenance is typically required for a bin dumper?

Routine maintenance commonly involves checking chains, sprockets, and bearings for wear, inspecting electrical connections, and ensuring safety interlocks function correctly. Regular cleaning, especially for food-grade units, is also essential.

Is customisation possible for specific bin types or discharge heights?

Many manufacturers offer customisation options for bin retention, discharge height, and chute design to suit specific operational requirements or non-standard bin dimensions. Buyers should discuss their exact needs with the seller.

What are the benefits of a double pillar design over a single pillar?

Double pillar dumpers typically offer greater stability and lifting capacity for heavier loads and larger bins, such as 770-litre units. They distribute the load more evenly, which can be beneficial for operational longevity and safety.

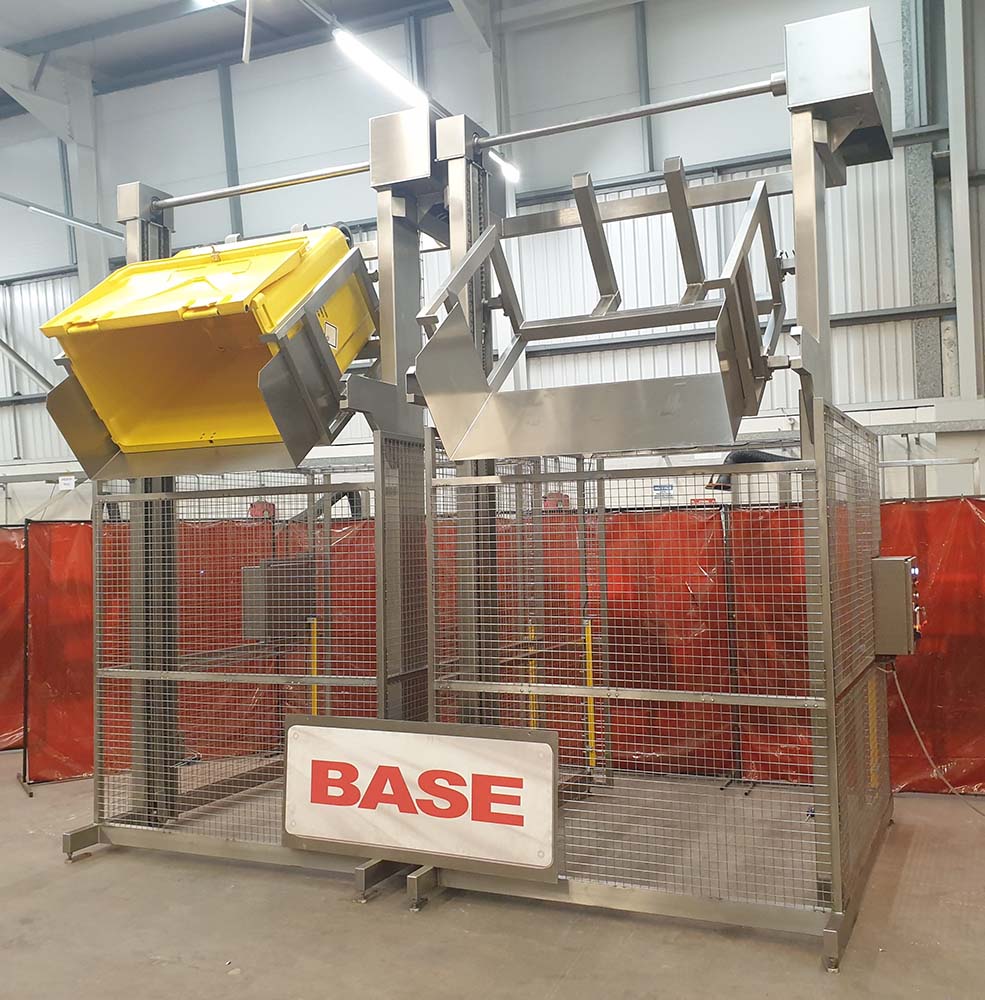

770 Litre Wheelie Bin Dumper - Lifting & Tipping, photo 1

770 Litre Wheelie Bin Dumper - Lifting & Tipping, photo 2

770 Litre Wheelie Bin Dumper - Lifting & Tipping, photo 3

770 Litre Wheelie Bin Dumper - Lifting & Tipping, photo 4

770 Litre Wheelie Bin Dumper - Lifting & Tipping, photo 5

770 Litre Wheelie Bin Dumper - Lifting & Tipping, photo 6

770 Litre Wheelie Bin Dumper - Lifting & Tipping

Available

Verified seller

Base Handling Ltd - 770 Litre Wheelie Bin Dumper

Name: 770 Litre Wheelie Bin Dumper
Brand: Base Handling Ltd
SKU: BTM/2P/400/2000/B/G
Availability: InStock

Price: Contact seller for price

BTM/2P/400/2000/B/G Double Pillar 770 Wheelie Bin Dumper

This Double Pillar 770 Litre Wheelie Bin Dumper is designed to lift and tip a 770 Litre Wheelie Bin at a discharge height of 2000mm. The 770 Litre Wheelie Bin Dumper is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be bolted to the floor. The lifting is accomplished via chains driven by a motor gearbox mounted at the top of the one column with a crossover shaft to the other column.

Safety Guard to BS EN 14120:2015 Safety of Machinery Guards

The 770 Litre Wheelie Bin Dumper is supplied complete with a safety guard to meet the guidelines of BS EN 14120:2015 Safety of Machinery Guards. The safety guard is constructed from 40 x 40 x 3mm stainless steel box section and 40 x 40mm, 3mm wire stainless steel weld mesh. It encloses the 770 Litre Wheelie Bin Dumper to a height of 2200mm on both sides with a safety light barrier at the loading position.

770 Litre Wheelie Bin Dumper Electrical Control

The 770 Litre Wheelie Bin Dumper is fitted with an IP65 Stainless Steel Control Panel which is mounted on the Safety Guard at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). The control panel incorporates the following controls; Up, Down, Guard Release, Emergency Stop and a Reset Facility.

Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site. The 770 Litre Wheelie Bin Dumper operation is latched so that pressing the ‘Up’ push button once will raise the lift to the full tip position. Once the product has been discharged, pressing the ‘Down’ push button once will return the machine to the full down position.

Blaenau Gwent County Borough, United Kingdom

5,743 km away

Description

770 Litre Wheelie Bin Dumper

Model No.

BTM/2P/400/2000/B/G

Capacity

400 Kgs

Overall Height

3835mm

Machine Handing

Left Hand

Maximum Headroom

5000mm

Tipping Chute

Yes, Fitted To Lift Carriage

Container Description

770 Litre Wheelie Bin

Base Arrangement

Bolted To The Floor

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

2.2kW, 415V, 3 PHASE, 50 CYCLE C/W BRAKE

Gearbox Detail

SEW Eurodrive

Tensile Strength

3000 Kgs

Lift Speed

6.4 Meters/Minute

Lift/Tension Chain

¾” Simplex

Tip Height

2000mm

Tip Angle

130 Degrees

Stock Number

BTM/2P/400/2000/B/G

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Transferring bulk ingredients from wheelie bins into processing lines.
Loading mixers, hoppers, or conveyors with raw materials.
Elevating waste products into skips or disposal units.
Handling ingredients in bakeries, meat processing, and ready-meal production.
Ergonomic lifting of heavy bins to reduce manual handling risks.

Typical bin capacity: Designed for 770-litre wheelie bins; other models may accommodate 120-litre, 240-litre, or 360-litre bins.
Discharge height: Commonly ranges from 1500mm to 3000mm, with this unit specified at 2000mm.
Construction material: Typically Grade 304 stainless steel for food contact and hygiene, with Grade 316 available for more corrosive environments.
Power supply: Units of this class commonly operate on 400V, 3-phase electrical supply.
Lifting mechanism: Often chain-driven by a motor gearbox, or hydraulic systems are also common.
Safety features: Typically includes full guarding to BS EN 14120:2015, safety light barriers, and emergency stop controls.
Footprint: Double pillar designs require more floor space than single pillar units but offer enhanced stability for heavier loads.

Typical safety features include fixed guarding, safety light barriers at the loading zone, emergency stop buttons, and interlocked access gates. These are designed to meet standards such as BS EN 14120:2015 and PUWER regulations.

Lifting and tipping equipment for food handling is valued for durability and reliability in demanding environments. Buyers typically prioritize robust construction, stainless steel components where applicable, and compliance with food safety standards. When purchasing used models, inspectors should assess mechanical wear, hydraulic system condition, and operational smoothness. Common strengths include longevity when properly maintained, efficient load handling, and adaptability to various food processing workflows. Equipment reputation generally remains strong provided previous maintenance records are documented and critical seals show minimal degradation.
