BTM/2P/1350/6320/B/G Double Pillar Bakery Tub Elevator

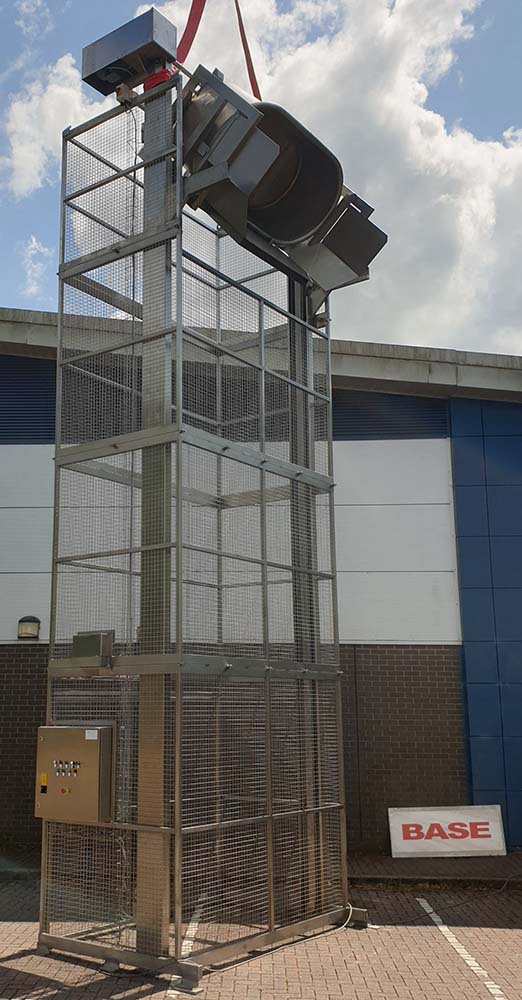

This Bakery Tub Elevator is designed to lift and tip a 1350 Kgs Dough Tub (2032mm x 1052mm x 937mm H) at a discharge height of 6320mm. The Bakery Tub Elevator is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be bolted to the floor with some additional bracing near the top. The lifting is accomplished via chains driven by a motor gearbox mounted at the top of the one column with a crossover shaft to the other column. The Dough Tub is loaded to tip along its long length using a Forklift Truck or similar.

Safety Guard to BS EN 14120:2015 Safety of Machinery Guards

This Bakery Tub Elevator is supplied complete with a safety guard to meet the guidelines of BS EN 14120:2015 Safety of Machinery Guards. The safety guard is constructed from 80 x 40 x 3mm stainless steel box section and 40 x 40mm aperture, 3mm wire stainless steel weld mesh which encloses the Bakery Tub Elevator to a height of 7820mm on all sides with a pair of hinged safety guard doors at the loading position. The guard doors are electrically and mechanically interlocked preventing the machine from operating when a door is open. Additionally, the guard doors can only be opened when the lift carriage is at the full down position to prevent access whilst a load is raised.

Bakery Tub Elevator Electrical Control

This Bakery Tub Elevator is fitted with an IP65 Stainless Steel Control Panel which is mounted on the Safety Guard at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). The control panel incorporates the following controls; Up, Down, Guard Release, Emergency Stop and a Reset Facility.

Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site. The Bakery Tub Elevator operation is latched so that pressing the ‘Up’ push button once will raise the lift to the full tip position. Once the product has been discharged, after an adjustable time period, the Bakery Tub Elevator will return to the full down position. The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.

Blaenau Gwent County Borough, United Kingdom

5,743 km away

Description

Bakery Tub Elevator

Model No.

BTM/2P/1350/6320/B/G

Capacity

1350 Kgs

Overall Height

8455mm

Machine Handing

Right Hand

Maximum Headroom

9000mm

Tipping Chute

Yes, Fitted To Lift Carriage

Container Description

Dough Tub (2032mm x 1052mm x 937mm H)

Base Arrangement

Bolted To The Floor

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

2.2kW, 480V, 3 PHASE, 60 CYCLE c/w BRAKE

Gearbox Detail

SEW Eurodrive

Tensile Strength

6000 Kgs, 3000 Kgs

Lift Speed

6.4 Meters/Minute

Tension Chain

¾” Simplex

Tip Height

6320mm

Tip Angle

140 Degrees

Lift Chain

1" Simplex

Stock Number

BTM/2P/1350/6320/B/G

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Efficiently transfer bulk dough from tubs to hoppers or mixers in large-scale bakeries.
Lift and tip ingredients into processing lines in food manufacturing facilities.
Handle and discharge bulk materials in confectionery or snack production.
Integrate into automated production lines requiring elevated material feeding.

Typical lifting capacity: Units of this type commonly handle tubs weighing up to 1500 kg.
Discharge height: For this class of equipment, discharge heights typically range from 2.5m to over 6m, depending on the specific application.
Construction material: Typically manufactured from Grade 304 stainless steel for hygiene and durability in food environments.
Power supply: Commonly requires a 3-phase electrical supply, typically 400V, 50Hz.
Safety features: Units are generally fitted with interlocked safety guarding, emergency stops, and overload protection, often compliant with BS EN 14120:2015.
Loading method: Designed for loading via forklift or pallet truck, tipping along the tub's long axis is common.
Control panel rating: Electrical control panels are typically rated to IP65 for washdown environments.
Footprint: Requires floor bolting and additional bracing; the overall footprint will include the elevator structure and safety guarding.
