What types of bins can this tipper handle?

This specific unit is designed for mobile plastic bins of a particular size. However, bin tippers are available for various bin types, including Eurobins, drums, and custom containers. Buyers should confirm compatibility with their existing bins.

Is this unit suitable for outdoor use?

While stainless steel construction offers good corrosion resistance, the IP65 rating of the control panel indicates protection against dust and water jets. For continuous outdoor use, additional weather protection or a higher IP rating might be necessary.

What maintenance is typically required?

Routine maintenance usually involves checking chain tension, lubricating moving parts, inspecting electrical connections, and ensuring safety interlocks function correctly. The mobile design facilitates access for maintenance.

Can the tipping height be adjusted?

For this class of equipment, the tipping height is generally fixed as per the original design for a specific discharge point. Customisation for adjustable height would typically require significant modification or a different model.

What safety features are included?

This unit includes a safety guard to BS EN 14120:2015, with an electrically and mechanically interlocked hinged door. The door can only be opened when the lift carriage is fully lowered, preventing access to moving parts during operation.

Is installation complex for a unit like this?

Installation for a mobile, single-pillar unit is generally straightforward, primarily involving positioning and connecting to a suitable electrical supply. No complex civil works are typically required.

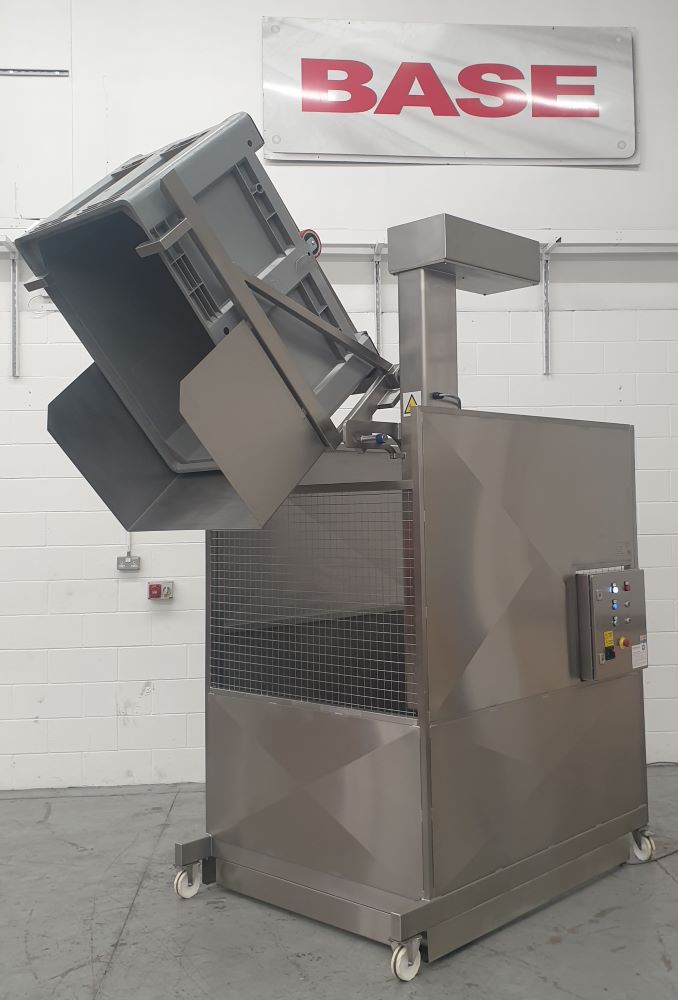

Compactor Bin Tipper - Lifting & Tipping, photo 1

Compactor Bin Tipper - Lifting & Tipping, photo 2

Compactor Bin Tipper - Lifting & Tipping, photo 3

Compactor Bin Tipper - Lifting & Tipping, photo 4

Compactor Bin Tipper - Lifting & Tipping, photo 5

Compactor Bin Tipper - Lifting & Tipping, photo 6

Compactor Bin Tipper - Lifting & Tipping

Available

Verified seller

Compactor Bin Tipper

Name: Compactor Bin Tipper
SKU: BTM/400/1700/M/G
Availability: InStock

Price: Contact seller for price

BTM/400/1700/M/G Single Pillar Compactor Bin Tipper

This Compactor Bin Tipper was a single pillar tipper designed to lift and tip a mobile plastic bin (1200 x 800 x 820mm High) containing recycled tins and cans at a discharge height of 1700mm into a Compactor. The Compactor Bin Tipper was manufactured from Grade 304 stainless steel and was a welded construction throughout. The Compactor Bin Tipper was mobile on castors to allow it to be moved away for maintenance access to the Compactor. The lifting is achieved by a ¾” Duplex chain driven by a motor gearbox mounted at the top of the main column.

Safety Guard to BS EN 14120:2015 Safety of Machinery Guards

The Compactor Bin Tipper was supplied complete with a safety guard to meet the guidelines of BS EN 14120:2015 Safety of Machinery Guards. The safety guard is constructed from 40 x 40 x 3mm stainless steel box section and 2.0mm stainless steel sheet. It encloses the Compactor Bin Tipper to a height of 2200mm on three sides with a hinged guard door on the fourth side. The guard door is electrically and mechanically interlocked preventing the Compactor Bin Tipper from operating when the door is open. Additionally, the guard door can only be opened when the lift carriage is at the full down position to prevent access whilst a load is raised.

Compactor Bin Tipper Electrical Control

The Compactor Bin Tipper was fitted with an IP65 Steel Control Panel which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site.

The control panel incorporates the following controls; Up, Down, Guard Release, Emergency Stop and a Reset Facility. The Compactor Bin Tipper operation is latched so that pressing the ‘Up’ push button once will raise the lift to the full tip position. Once the product has been discharged, pressing the ‘Down’ push button once will return the Compactor Bin Tipper to the full down position. The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.

Blaenau Gwent County Borough, United Kingdom

5,743 km away

Description

Compactor Bin Tipper

Model No.

BTM/400/1700/M/G

Capacity

400kgs

Overall Height

2985mm

Machine Handing

Left Hand

Maximum Headroom

4000mm

Tipping Chute

Yes, Fitted To Lift Carriage

Container Description

Mobile Plastic Dolaf (1200 x 800 x 820mm H)

Base Arrangement

Mobile On Castors

Control Circuit

24Vdc

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

1.1kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE

Gearbox Detail

SEW

Output R.P.M

28 R.P.M.

Ratio

50:1

Tensile Strength

6000 Kgs

Lift Speed

6.4 Meters/Minute

Tip Height

1700mm

Tip Angle

135 Degrees

Load/Tension Chain

¾” DUPLEX

Stock Number

BTM/400/1700/M/G

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Transferring waste materials like tins and cans from bins into compactors or balers.
Emptying ingredients or products from mobile bins into processing lines.
Lifting and tipping bulk solids or liquids in various industrial settings.
Handling materials in food processing, pharmaceutical, and chemical industries.
Improving ergonomic safety by automating manual lifting and tipping tasks.

Construction material: Units of this type, especially for food processing, are commonly manufactured from Grade 304 stainless steel, with welded construction throughout.
Tipping height: For this class of equipment, tipping heights typically range from 1500mm to 2500mm, with this unit specified at 1700mm.
Bin compatibility: This unit is designed for mobile plastic bins, typically measuring around 1200 x 800 x 820mm high, but other models can accommodate various bin sizes and types.
Lifting mechanism: Commonly, lifting is achieved via a duplex chain system driven by a motor gearbox, often mounted at the top of the main column.
Mobility: Many single pillar bin tippers are mobile on castors, allowing for repositioning and maintenance access.
Safety guarding: Units typically feature safety guards conforming to standards like BS EN 14120:2015, with interlocked doors preventing operation when open.
Electrical control: An IP65 rated steel control panel is commonly fitted, mounted on the main column for convenient access and maintenance.
Power supply: For industrial equipment of this nature, a 3-phase electrical supply, typically 400V, is commonly required.

This specific unit is designed for mobile plastic bins of a particular size. However, bin tippers are available for various bin types, including Eurobins, drums, and custom containers. Buyers should confirm compatibility with their existing bins.

Lifting and tipping equipment for food handling is valued for durability and reliability in demanding environments. Buyers typically prioritize robust construction, stainless steel components where applicable, and compliance with food safety standards. When purchasing used models, inspectors should assess mechanical wear, hydraulic system condition, and operational smoothness. Common strengths include longevity when properly maintained, efficient load handling, and adaptability to various food processing workflows. Equipment reputation generally remains strong provided previous maintenance records are documented and critical seals show minimal degradation.
