What is an end-load cartoner?

An end-load cartoner inserts products into the end flap of a pre-erected carton. The product is pushed horizontally into the carton, which is then sealed.

What does 'intermittent motion' mean for a cartoner?

Intermittent motion means the machine stops briefly during each cycle to allow for product loading and carton sealing. This is often preferred for precise product handling or lower speed requirements compared to continuous motion.

Is a hot-melt glue system suitable for all carton types?

Hot-melt glue systems are highly versatile and suitable for most standard carton board types. However, specific carton coatings or materials might require specialist adhesives or alternative sealing methods.

What kind of maintenance does a cartoner like this typically require?

Routine maintenance commonly involves lubrication of moving parts, inspection and replacement of wear items like belts and seals, and cleaning of the hot-melt glue system. Regular checks of electrical and pneumatic components are also essential.

Can this machine handle different product sizes?

Yes, cartoners of this type are typically designed to handle a range of product and carton sizes. This usually requires change parts and adjustments to be made, which can vary in complexity and time depending on the machine's design.

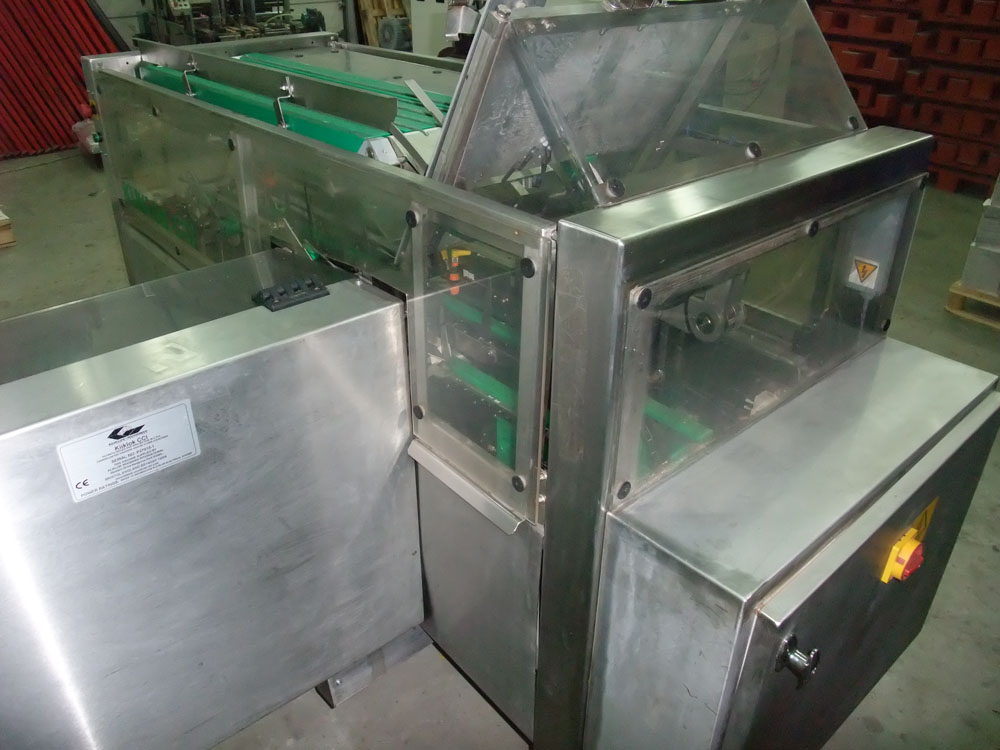

Used kliklok-Woodman CCI - Cartoning, photo 1

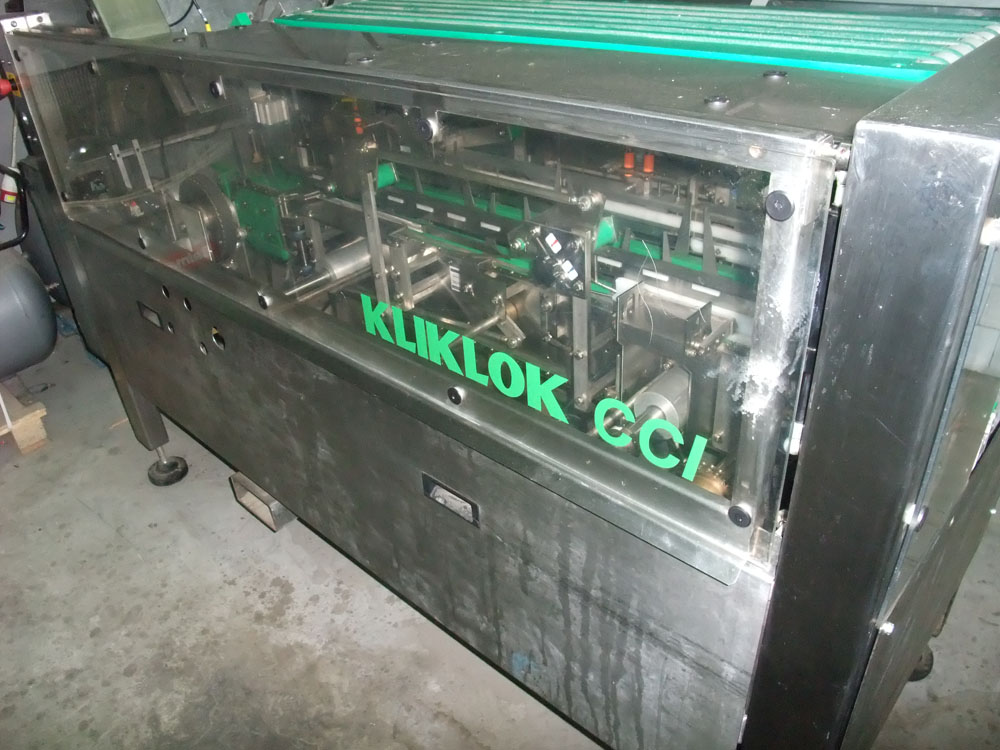

Used kliklok-Woodman CCI - Cartoning, photo 2

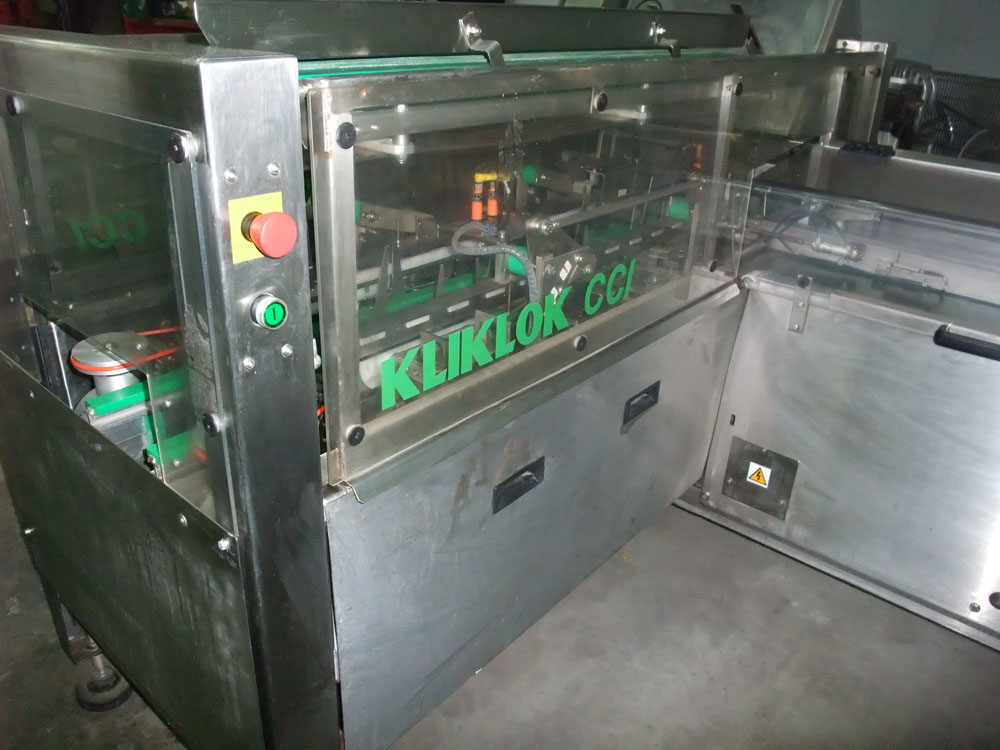

Used kliklok-Woodman CCI - Cartoning, photo 3

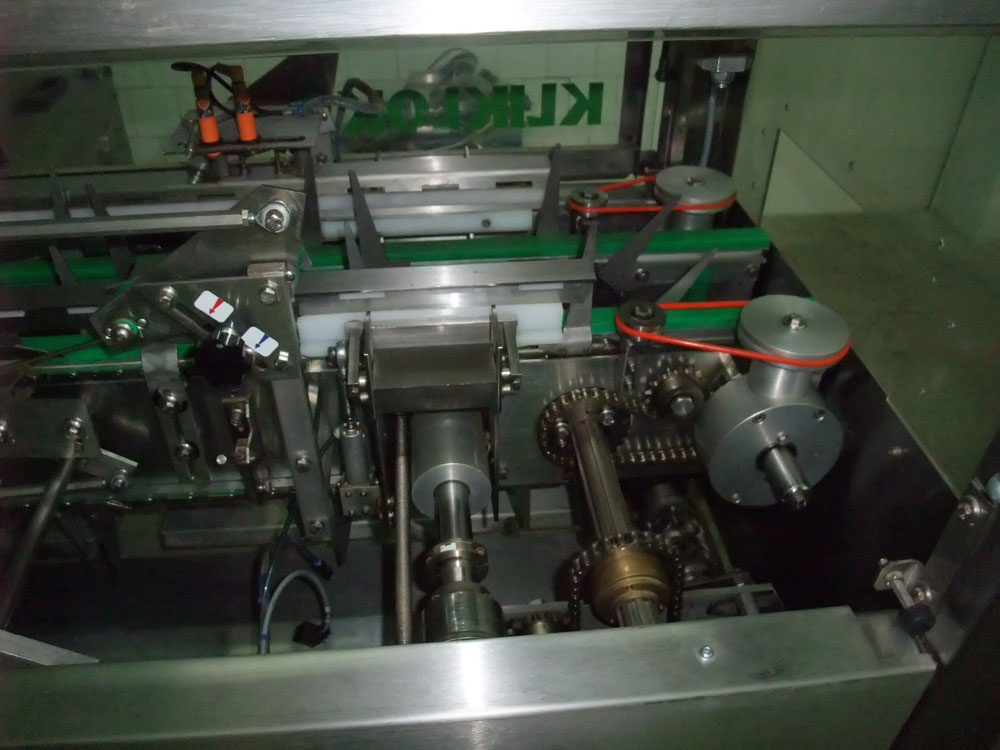

Used kliklok-Woodman CCI - Cartoning, photo 4

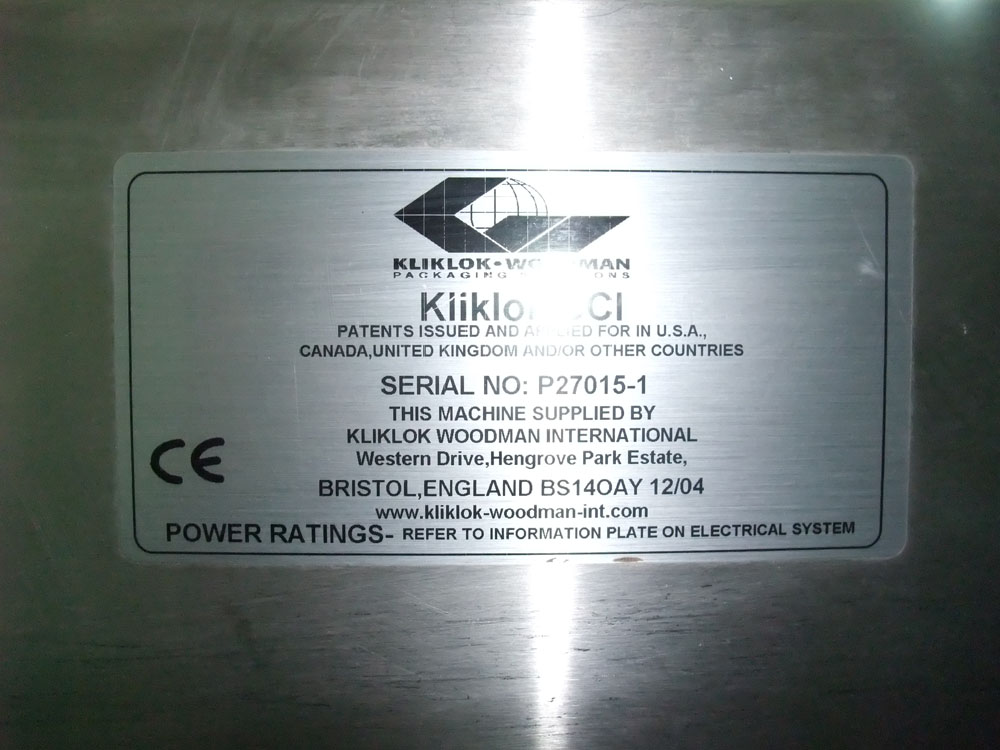

Used kliklok-Woodman CCI - Cartoning, photo 5

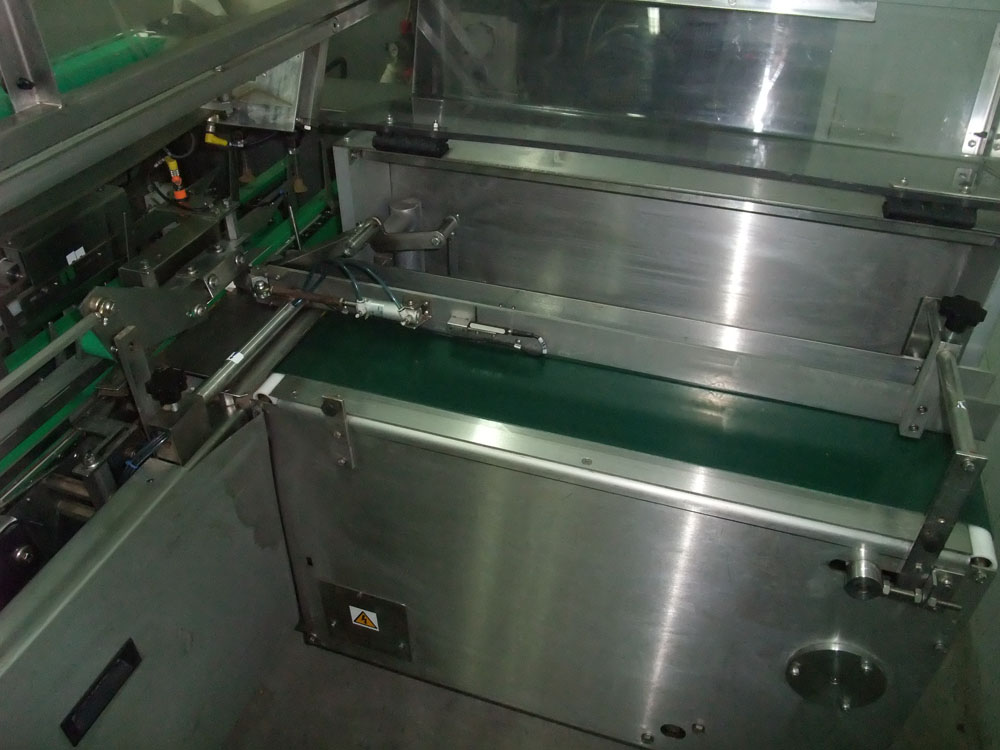

Used kliklok-Woodman CCI - Cartoning, photo 6

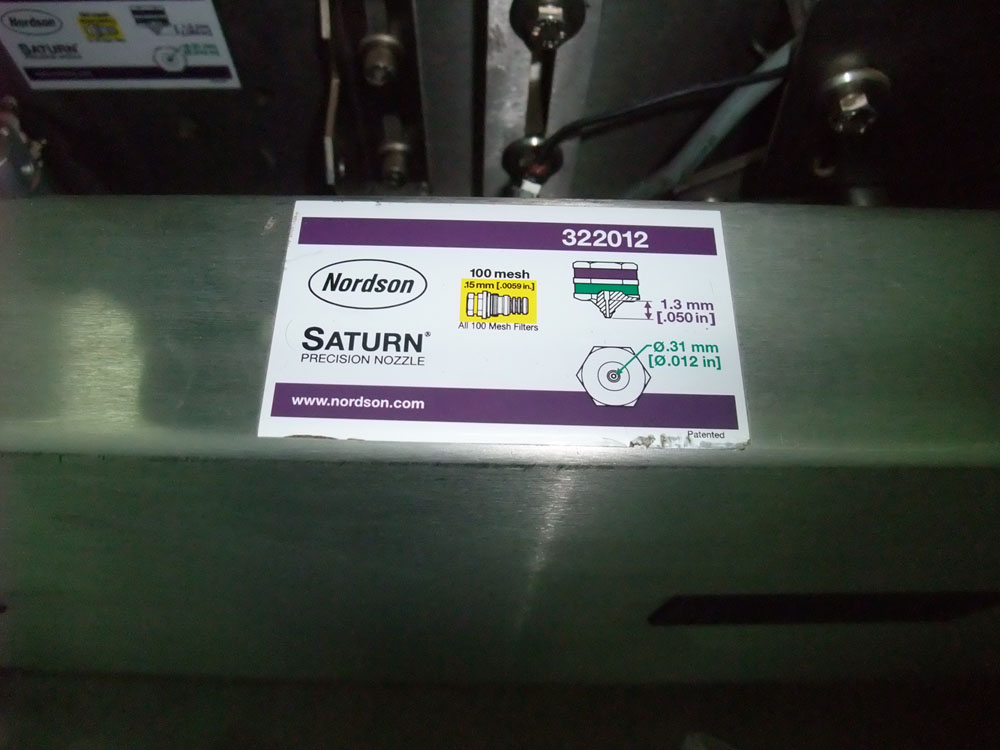

Used kliklok-Woodman CCI - Cartoning, photo 7

used Equipment

Recently Sold

Verified seller

OK Corp - kliklok-Woodman CCI

Name: kliklok-Woodman CCI
Brand: OK Corp
SKU: 3fe78a8acf5f
Availability: SoldOut

Price: Contact seller for price

Kliklok Model CCI Automatic End load cartoner SOLD Compact Cartoner Intermittent. Year 2005 Only been used for 2 months from new. Very compact design. Product automatically feeds in at right angles to the main body of machine. Standard Features Predominantly Stainless Steel construction Powered Hopper Mechanical INdexing system Liftable Overhead guides Hot-melt glue system Powered outfeed belts ‘Slam-shut’ folding & compression Large size range CE Mark Size Ranges: Length:- Min. 50mm (2″) x Max. 260mm (10.23″) Width:- Min. 25mm (0.98″) x Max. 100mm (3,93″) Height:- Min.100mm (3.93″) x Max. 300mm (11.81″) Performance Speed upto 40cartons per minute. Actual speed depends on pitch, product characteristics, carton size and style. Overall footprint/dimensions of cartoner: Length 3140mm x Width 1826mm x Height 1524mm max. Location: Lithuania SOLD

Essex, United Kingdom

5,756 km away

Model Number

kliklok-woodman-cci

Stock Number

3fe78a8acf5f

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Packaging confectionery, baked goods, and snack foods into cartons.
Automating the cartoning process for frozen foods and ready meals.
Packing pharmaceutical products, cosmetics, and personal care items.
Collating and cartoning small industrial components or hardware.
Used in food processing lines for secondary packaging of primary-packed items.

Typical capacity: For this class of intermittent motion cartoner, speeds commonly range from 30 to 60 cartons per minute, depending on carton size and product characteristics.
Power supply: Units of this type typically require a 3-phase electrical supply, commonly 400V, 50Hz, with a control voltage of 24V DC or similar.
Footprint: As a 'compact' intermittent end-load cartoner, the footprint is typically smaller than continuous motion machines, often around 2-3 metres in length and 1.5-2 metres in width.
Carton size range: These machines are generally designed for a broad range of carton sizes, with specific dimensions depending on the change parts installed. Buyers should confirm the current setup with the seller.
Sealing method: This unit features a hot-melt glue system, which is a common and reliable method for sealing cartons in this category.
Construction materials: Predominantly stainless steel construction is typical for food-grade and hygienic applications, offering durability and ease of cleaning.
Certification: The presence of a CE Mark indicates compliance with European health, safety, and environmental protection standards for products sold within the EEA.

An end-load cartoner inserts products into the end flap of a pre-erected carton. The product is pushed horizontally into the carton, which is then sealed.

Cartoning equipment holds strong reputation for reliability in pharmaceutical and food processing sectors. Buyers typically value machines offering consistent case erection, product loading and sealing with minimal downtime. When purchasing used units, inspectors should assess wear on servo motors, gripper mechanisms and seal tooling, as these components incur significant usage. Industry sentiment favours models demonstrating straightforward maintenance access and parts availability. Durable construction and precise automation remain key strengths. Operational history and maintenance records prove essential evaluation criteria for secondhand purchases.
