What type of mixing bowls can this lifter accommodate?

This specific unit is designed for 60-quart Hobart mixing bowls. Other lifters in this category may be configured for different bowl sizes or types; buyers should confirm compatibility with the seller.

What are the typical safety features of a mixing bowl lifter?

Common safety features include automatic safety latches, upper and lower limit switches, and 'hold to run' controls. These are designed to prevent accidents and ensure safe operation.

Is this equipment suitable for washdown environments?

Units constructed from Grade 304 stainless steel with IP65 rated electrical components are generally suitable for washdown, making them ideal for food processing environments. Always verify specific IP ratings.

Can the discharge height be adjusted?

While the stated discharge height is fixed for this unit, the end-of-travel limit switches are typically adjustable by trained personnel for fine-tuning on site to suit specific receiving equipment.

What maintenance is typically required for a mixing bowl lifter?

Routine maintenance usually involves checking the lifting chain, motor gearbox, and electrical connections. Regular lubrication and inspection of safety mechanisms are also important to ensure continued safe operation.

Does this equipment comply with UK safety regulations?

Equipment sold in the UK is expected to comply with relevant regulations such as PUWER (Provision and Use of Work Equipment Regulations 1998). Buyers should confirm compliance and any associated documentation with the seller.

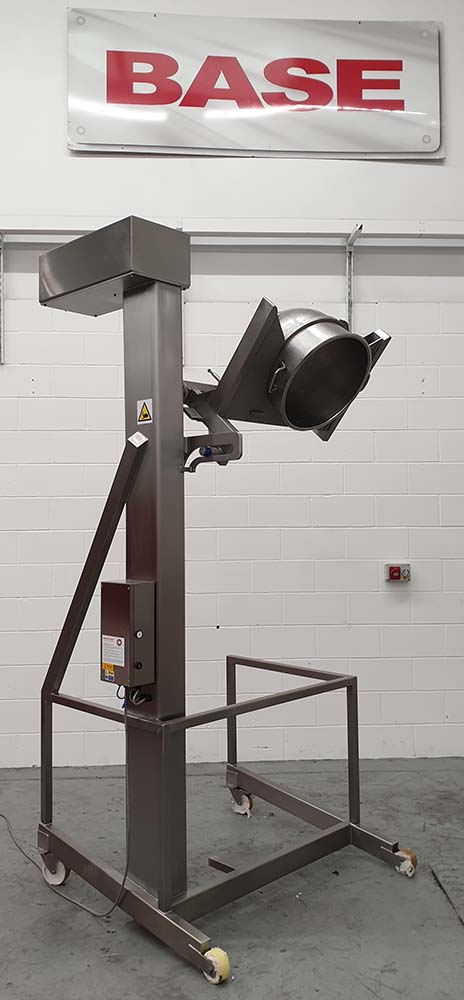

Mixing Bowl Lifter - Lifting & Tipping, photo 1

Mixing Bowl Lifter - Lifting & Tipping, photo 2

Mixing Bowl Lifter - Lifting & Tipping, photo 3

Mixing Bowl Lifter - Lifting & Tipping, photo 4

Mixing Bowl Lifter - Lifting & Tipping, photo 5

Mixing Bowl Lifter - Lifting & Tipping, photo 6

Available

Verified seller

Base Handling Ltd - Mixing Bowl Lifter

Name: Mixing Bowl Lifter
Brand: Base Handling Ltd
SKU: BTM/200/2000/M
Availability: InStock

Price: Contact seller for price

BTM/200/2000/M Single Pillar Mixing Bowl Lifter

This Single Pillar Mixing Bowl Lifter is designed to lift and tip a 60 Quart Hobart Mixing Bowl at a discharge height of 2000mm. The Mixing Bowl Lifter is manufactured from Grade 304 stainless steel and is a welded construction throughout. The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column. The Mixing Bowl Lifter is fitted with our unique safety latch which engages automatically in the extremely unlikely event of a lift chain failure.

Mixing Bowl Lifter Electrical Control

This Mixing Bowl Lifter is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site.

The unguarded Mixing Bowl Lifter operates on a ‘hold to run’ principle such that the ‘Up’ or ‘Down’ pushbuttons must be held for the Mixing Bowl Lifter to operate. As soon as either button is released, the Mixing Bowl Lifter will stop. The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.

Blaenau Gwent County Borough, United Kingdom

5,743 km away

Description

Single Pillar Mixing Bowl Lifter

Model No.

BTM/200/2000/M

Capacity

200 Kgs

Overall Height

2839mm

Machine Handing

Right Hand

Maximum Headroom

3000mm

Tipping Chute

Container Description

60 Quart Hobart Mixing Bowl

Base Arrangement

Mobile On Castors

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

0.75kW, 415V, 3 PHASE, 50 CYCLE c/w BRAKE

Gearbox Detail

SEW Eurodrive

Output R.P.M

28 R.P.M.

Ratio

50:1

Tensile Strength

3000 Kgs

Lift Speed

6.4 Meters/Minute

Tip Height

2000mm

Tip Angle

130 Degrees

Load/Tension Chain

¾” Simplex

Stock Number

BTM/200/2000/M

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Used for transferring ingredients from mixing bowls into hoppers or other processing equipment.
Commonly employed in bakeries for dough transfer and confectionery production.
Utilised in food manufacturing facilities for lifting and emptying various food mixtures.
Applicable in pharmaceutical and chemical industries for controlled material discharge.
Essential for ergonomic and safe handling of heavy mixing bowls, reducing manual labour.

Typical capacity: Designed for standard mixing bowl sizes, commonly 60-quart (approx. 57 litres) Hobart-style bowls for this class of equipment.
Discharge height: Units of this type typically offer discharge heights around 2000mm, adjustable for specific receiving equipment.
Construction material: Commonly manufactured from Grade 304 stainless steel for hygiene and durability in food environments.
Lifting mechanism: Often features a simplex chain drive system, powered by a motor gearbox for reliable operation.
Safety features: Typically includes safety latches to prevent uncontrolled descent and upper/lower travel limit switches.
Electrical control: Units commonly feature IP65 rated stainless steel control panels with 'hold to run' operation for safety.
Power supply: Typically operates on a three-phase industrial power supply, commonly 400V, 50Hz in the UK.
Footprint: Single pillar designs offer a relatively compact footprint, suitable for integration into existing production lines.

This specific unit is designed for 60-quart Hobart mixing bowls. Other lifters in this category may be configured for different bowl sizes or types; buyers should confirm compatibility with the seller.

Lifting and tipping equipment for food handling is valued for durability and reliability in demanding environments. Buyers typically prioritize robust construction, stainless steel components where applicable, and compliance with food safety standards. When purchasing used models, inspectors should assess mechanical wear, hydraulic system condition, and operational smoothness. Common strengths include longevity when properly maintained, efficient load handling, and adaptability to various food processing workflows. Equipment reputation generally remains strong provided previous maintenance records are documented and critical seals show minimal degradation.
