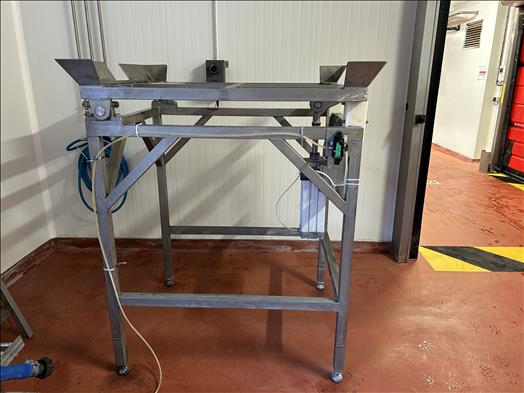

NNP IBC tilting frame

• Used in food processing to facilitate the controlled discharge of ingredients from Intermediate Bulk Containers (IBCs).
• Commonly employed in bakeries and confectionery for dispensing dry ingredients like flour, sugar, or cocoa.
• Utilised in dairy and beverage production for emptying liquid or semi-liquid ingredients from IBCs.
• Applicable in pharmaceutical and chemical industries for precise material handling and discharge from bulk containers.

Typical capacity

Designed to accommodate standard IBCs, typically ranging from 500 to 1,500 litres.

Power supply

Pneumatic operation is common for this type of tilting frame, requiring a compressed air supply, typically 6-8 bar.

Material of construction

Units for food processing are typically constructed from stainless steel (e.g., 304 or 316 grade) for hygiene and corrosion resistance.

Tilting mechanism

Pneumatic cylinders are commonly used to provide a controlled and smooth tilting action for discharge.

Discharge angle

Typically offers a maximum tilt angle of 30-45 degrees to ensure complete material evacuation.

Footprint

The footprint will vary, but buyers should consider the space required for the frame and the IBC when tilted.

• What types of IBCs are compatible with this tilting frame?

  This frame is designed for standard industrial IBCs. Buyers should verify the specific dimensions and base configuration of their IBCs against the frame's specifications.

• Is this unit suitable for both liquid and dry ingredients?

• What maintenance is typically required for a pneumatic tilting frame?

• Does this unit come with an integrated control system?

• What safety features are commonly found on these frames?

Lifting and tipping equipment for food handling is valued for durability and reliability in demanding environments. Buyers typically prioritize robust construction, stainless steel components where applicable, and compliance with food safety standards. When purchasing used models, inspectors should assess mechanical wear, hydraulic system condition, and operational smoothness. Common strengths include longevity when properly maintained, efficient load handling, and adaptability to various food processing workflows. Equipment reputation generally remains strong provided previous maintenance records are documented and critical seals show minimal degradation.

General overview for this equipment type
