What types of bins can this tipper handle?

This specific unit is designed for Rubbermaid Brute bins, typically 20-gallon and 50-gallon sizes. Buyers should confirm compatibility with their existing bin types.

What are the power requirements for this equipment?

Bin tippers of this class commonly operate on a standard industrial three-phase power supply. Buyers should verify the exact voltage and amperage with the seller.

Is this tipper suitable for washdown environments?

Yes, with Grade 304 stainless steel construction and an IP65 control panel, this unit is generally suitable for environments requiring regular washdown.

What safety features are included?

This unit includes a safety guard compliant with BS EN 14120:2015, featuring an electrically and mechanically interlocked hinged door that prevents operation when open and access when the load is raised.

Does this unit require professional installation?

Due to its design for floor bolting and electrical connections, professional installation is typically recommended to ensure stability, safety, and correct operation.

Can the discharge height be adjusted?

This unit is specified with a fixed discharge height of 3500mm. Customisation for adjustable heights is generally not a standard feature for this type of tipper.

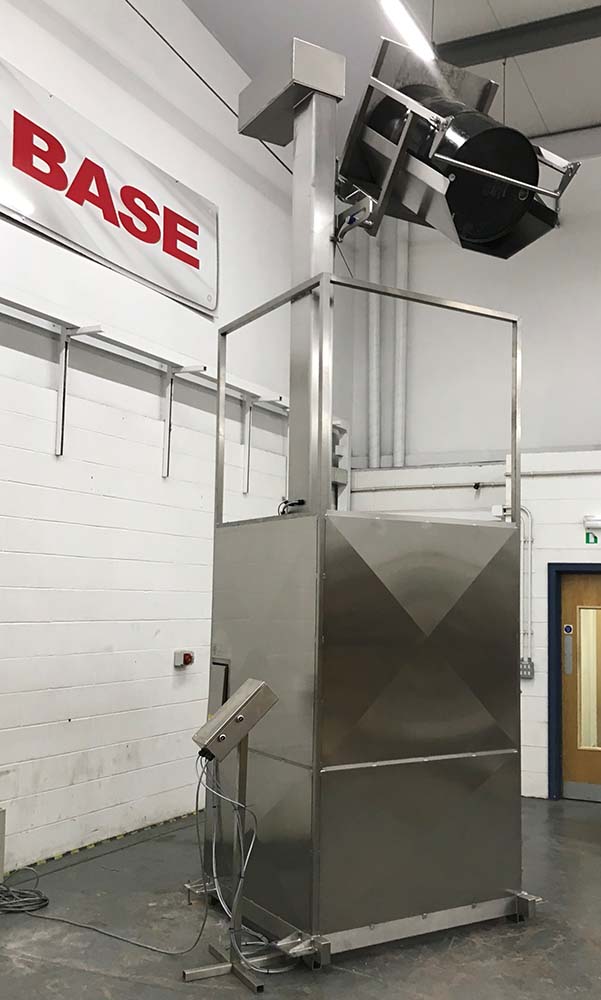

Rubbermaid Brute Bin Tipper - Lifting & Tipping, photo 1

Rubbermaid Brute Bin Tipper - Lifting & Tipping, photo 2

Rubbermaid Brute Bin Tipper - Lifting & Tipping, photo 3

Rubbermaid Brute Bin Tipper - Lifting & Tipping, photo 4

Rubbermaid Brute Bin Tipper - Lifting & Tipping, photo 5

Rubbermaid Brute Bin Tipper - Lifting & Tipping, photo 6

Rubbermaid Brute Bin Tipper - Lifting & Tipping

Available

Verified seller

Base Handling Ltd - Rubbermaid Brute Bin Tipper

Name: Rubbermaid Brute Bin Tipper
Brand: Base Handling Ltd
SKU: BTM/300/3500/B/G
Availability: InStock

Price: Contact seller for price

BTM/300/3500/B/G Single Pillar Rubbermaid Brute Bin Tipper

This Rubbermaid Brute Bin Tipper is designed to lift and tip both a 20 gallon and a 50 gallon Brute Bin at a discharge height of 3500mm. The Rubbermaid Brute Bin Tipper is manufactured from Grade 304 stainless steel, is a welded construction throughout and is designed to be bolted to the floor. The lifting is achieved by a ¾” Simplex chain driven by a motor gearbox mounted at the top of the main column.

Safety Guard to BS EN 14120:2015 Safety of Machinery Guards

This Rubbermaid Brute Bin Tipper was supplied complete with a safety guard to meet the guidelines of BS EN 14120:2015 Safety of Machinery Guards. The safety guard is constructed from 40 x 40 x 3mm stainless steel box section and 2.0mm stainless steel sheet. It encloses the Rubbermaid Brute Bin Tipper to a height of 2200mm on three sides with a hinged guard door through which the bins are loaded. The guard door is electrically and mechanically interlocked preventing the Rubbermaid Brute Bin Tipper from operating when the door is open. Additionally, the guard door can only be opened when the lift carriage is at the full down position to prevent access whilst a load is raised.

Rubbermaid Brute Bin Tipper Electrical Control

This Rubbermaid Brute Bin Tipper is fitted with an IP65 Stainless Steel Control Panel which is mounted on the main column at a convenient position to give good maintenance access under the Provision and Use of Work Equipment Regulation 1998 (PUWER). Upper and Lower end of travel limit switches are positioned to prevent inadvertent adjustment or damage but are easily adjustable by trained personnel for fine adjustment on site.

The control panel incorporates the following controls; Up, Down, Guard Release, Emergency Stop and a Reset Facility. The Rubbermaid Brute Bin Tipper operation is on a latched principle so that pressing the ‘Up’ push button once will raise the lift to the full tip position. Once the product has been discharged, pressing the ‘Down’ push button once will return the Rubbermaid Brute Bin Tipper to the full down position. The control panel has a volt free pair of contacts which can be used to connect a ‘Call to Run’ signal if required.

Blaenau Gwent County Borough, United Kingdom

5,743 km away

Description

Rubbermaid Brute Bin Tipper

Model No.

BTM/300/3500/B/G

Capacity

300 Kgs

Overall Height

4730mm

Machine Handing

Right Hand

Maximum Headroom

6000mm

Tipping Chute

Yes, Fitted To Lift Carriage

Container Description

20 & 50 Gallon Brute Bin

Base Arrangement

Bolted To The Floor

Control Circuit

24Vac

Electrical Rating

IP65

Limit Switches

Telemecanique

Motor Detail

0.75kW, 480V, 3 PHASE, 60 CYCLE, c/w BRAKE

Gearbox Detail

SEW Eurodrive

Output R.P.M

28 R.P.M.

Ratio

50:1

Tensile Strength

3000 Kgs

Lift Speed

6.4 Meters/Minute

Load/Tension Chain

¾” Simplex

Tip Height

3500mm

Tip Angle

130 Degrees

Stock Number

BTM/300/3500/B/G

Machinery Masters View

Typical context for this category of equipment. Always confirm specifics with the seller.

Transferring ingredients from bins into processing machinery in bakeries and food manufacturing.
Loading raw materials into mixers or hoppers in pharmaceutical production.
Emptying waste or recycling bins into larger containers in industrial settings.
Moving bulk ingredients from storage to production lines in confectionery and snack food plants.
Discharging contents of bins into packaging equipment in various industries.

Typical capacity: Designed to lift and tip standard 20-gallon and 50-gallon Rubbermaid Brute bins.
Discharge height: This unit offers a discharge height of 3500mm, suitable for elevated feeding applications.
Construction material: Manufactured from Grade 304 stainless steel with welded construction, commonly found for hygiene and durability.
Mounting: Designed for floor bolting, providing stability during operation.
Lifting mechanism: Typically uses a Simplex chain driven by a top-mounted motor gearbox for reliable lifting.
Safety guarding: Includes a safety guard to BS EN 14120:2015 standards, enclosing the unit on three sides with an interlocked hinged door.
Electrical control: Features an IP65 Stainless Steel Control Panel, commonly positioned for accessibility and compliance with PUWER 1998.
Footprint: Single pillar design, offering a relatively compact footprint for its class, though exact dimensions vary.

This specific unit is designed for Rubbermaid Brute bins, typically 20-gallon and 50-gallon sizes. Buyers should confirm compatibility with their existing bin types.

Lifting and tipping equipment for food handling is valued for durability and reliability in demanding environments. Buyers typically prioritize robust construction, stainless steel components where applicable, and compliance with food safety standards. When purchasing used models, inspectors should assess mechanical wear, hydraulic system condition, and operational smoothness. Common strengths include longevity when properly maintained, efficient load handling, and adaptability to various food processing workflows. Equipment reputation generally remains strong provided previous maintenance records are documented and critical seals show minimal degradation.
